Differntial Pressure Gauge

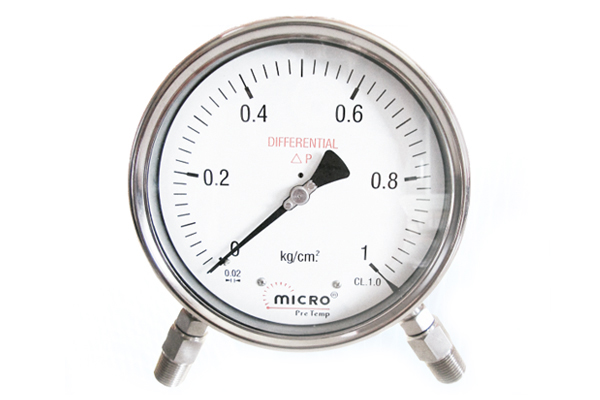

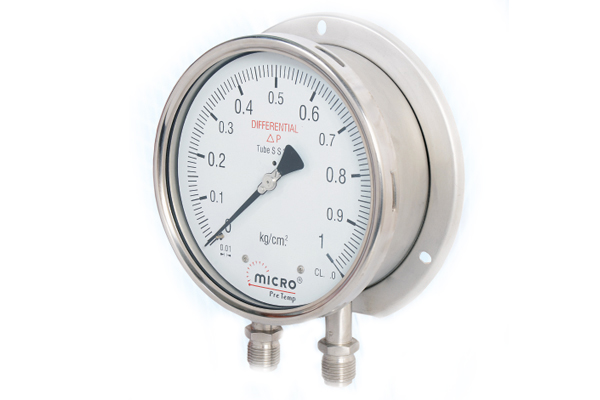

Bourdon Type Differential

MICRO high quality Bourdon Operated Differential pressure gauges are built with stainless, chrome- nickel steels (i.e. S.S.316 or better). They can be used under all operational conditions, practically without limitations to measure differential pressure of two separate inputs on one dial indicator. The pressure gauges are suitable for extreme measuring conditions. The gauges can be used for all liquids and gases used in processes except for those having a high viscosity, or which are liable to crystallized

(Confirming to EN-837-3 & IS-3624)

Nominal size

 Ø 100 & 150 mm

Accuracy

 ±2% of FS
Case & Bezel SS 304 case with Snap Action bayonet
lock type bezel (SS 316 Optional)
Ingress Protection IP 65 as per EN 60 529 or IS/IEC 60 529
IP 68 as per IS/IEC 60 529 – Optional
Pressure element : Bourdon Tube SS 316L
Static Pressure 1.5 Times of Pressure Range
Movement SS 304 Double bearing friction less type
Dial Aluminium —Pre-coated White with black marking
Pointer Aluminium —Black Finish Micro Zero Adjustment
Window 4 mm thick Toughened Glass
(Safety / Shatter Proof Optional)
Joints Argon welded
Sealing gasket SS 316 / SS 316L (Monel 400 Optional)
Blow out protection Neoprene Rubber (EPDM Optional)
On Back of Case
Pressure relief Top of Case with Vent Valve (On Request)
Process Connection : (HP & LP) 1/4” / 3/8” / 1/2” BSP / NPT / BSPT (Male)
M20 X 1.5 (Male), Other Male or Female Connection
On Request
Permissible temperature Ambient : -25'C to 60'C
Process : Maximum 60'C
Type of mounting Bottom Connection Direct Mounting
Bottom Connection Surface Mounting
Pipe / Yoke Mounting
Differential Pressure ΔP range 0.6 … up to 10 bar
Optional Available features • Liquid Filled Case

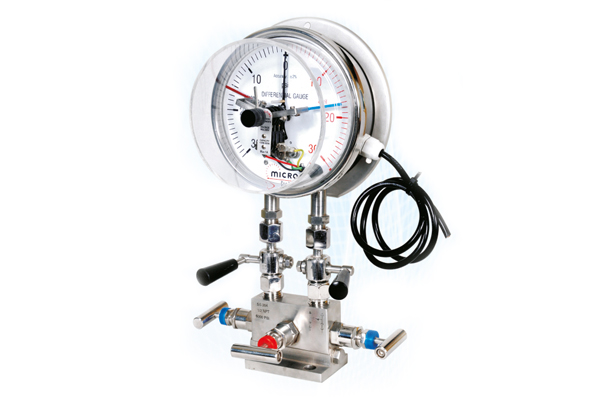

• Electrical Contact
• Pressure Equalizing Valve

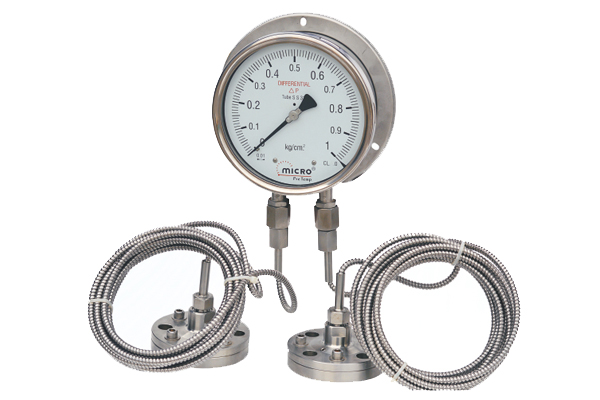

• Diaphragm Seal unit suitable to process medium with Capillary Extension
• Maximum pointer Follower
