Manometer

Manometer

Micro Fluid filled portable and stationary Manometers are indicators for the difference between two pressures & can also be used for single pressure. The inexpensive manometers measure positive, negative and differential pressures. Applications vary for the different types of stationary manometers. Manometers are unique in being both pressure measurement instruments and standards for calibration of other instruments.
Pressure is defined as a force per unit area and the most accurate way to measure low air pressure is to balance a column of liquid known weight against it and measure the height of the liquid column so balanced. The unit of measure commonly used are mm Hg / inches Hg using mercury as the fluid and mmWc / inches Wc using water or oil as the fluid.

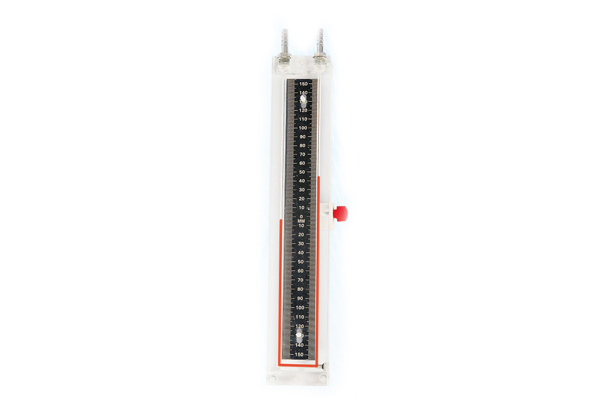

Acrylic Body Manometer

Types

 Inclined
Single Limb
'U' Tube

Housing

 Solid Transparent Block of Acrylic
Metering Tube Drilled through Solid Acrylic Block
Scale White Acrylic with Black Markings Standard
(Red / Blue Marking Optional)
Black Colored Aluminium with White Markings
Accuracy ±2% of FS
Indicating Liquid Red having Specific Gravity 0.81
Connection PVC Standard / SS Nozzle (Optional)
Mounting Wall Mounting (Standard)
Adjustable 3 Leg Stand Mounting (Optional)
Zero Adjustment By External Knob
Working Temperature Maximum 80°C
Ranges Inclined : 10, 15, 25, 50, 75, 100 mm H2O
Single Limb : 100, 150, 200, 250, 300, 400, 500 mm H2O
'U' Tube : 100-0-100, 150-0-150, 200-0-200, 250-0-250 mm H2O

Glass Tube Manometer

Types

 Single Limb
'U' Tube

Housing

 Aluminium Powder Coated
Metering Tube Heavy Duty Borosilicate Glass
Scale White Acrylic with Black Markings Standard
(Red / Blue Optional)
Black Colored Aluminium with White Markings
Accuracy ±2% of FS
Indicating Liquid Red having Specific Gravity 0.81 (Standard) Mercury (Optional)
Window Transparent Acrylic
Connection SS Nozzle
Mounting Wall Mounting (Standard)
Adjustable 3 Leg Stand Mounting (Optional)
Zero Adjustment By External Knob
Working Temperature Maximum 250°C
Ranges Single Limb : 100, 150, 200, 250, 300, 400, 500, 700 & 1000 mm H2O
'U' Tube : 100-0-100, 150-0-150, 200-0-200, 250-0-250, 500-0-500, 700-0-700, 1000-0-1000 mm H2O
